Product Description
17H131- Machine only
APH131-Includes Fusion Air Purge gun, 50' Xtreme wrap heated hose, 10'Extreme wrap heated whip hose
CSH131-Includes Fusion Clearshot gun, 50' Xtreme wrap heated hose, 10' Extreme wrap heated whip hose
P2H131-Includes Probler P2 gun, 50' Xtreme wrap heated hose, 10' Extreme wrap heated whip hose
What a hydraulic system can do for you:
- Dependability-robust, durable, longest life spray system
- Reduce downtime-allows for longer time in between required maintenance
- Increase daily productivity-capable of extremely high duty cycle
Max fluid working pressure:2000psi
Heater size:10kw
Max hose length:310ft
Max fluid temp:190°F
Max output:28lb/min
Amps:230V 1-ph -- 79A, 230V 3-ph -- 46A, 400V 3ph -- 35A
Weight:530lb
Reactor 2 Hydraulic Series
Highest value for the best performance Graco's line of hydraulic Reactors brings increased yield and performance to high-output spraying. Ideal for in-plant OEMs or applicators that spray high volume.
1. Advanced Controls
- Easy to operate Display Module Interface (ADM)
2. Ergonomic set-up
- Electronics are above the pumps at comfortable working height for easier service
3. Voltage Jumpers
- Available on H-30 and H-XP2 (Inside Electronics Cabinet) allows for one model to be wired to different voltages
4. Horizontal Pump Line
- Slower cycle rate
5. Easy Troubleshooting Diagnosis
- Troubleshooting Y-strainers for analog temperature and pressure gauges
- Inlet pressure and temperature is displayed and recorded on ADM

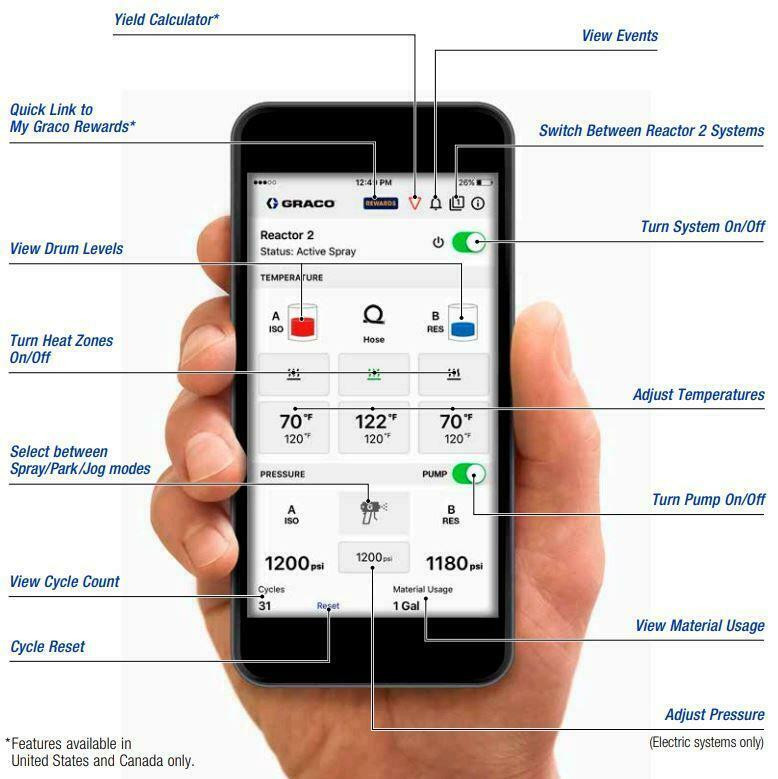

Graco Reactor 2 App
- The Reactor 2 app lets you make real time adjustments from your smartphone. Save time by not having to run to your Reactor 2 system to make changes and view details.
Be more efficient
' Set pump to spray, park or jog
' Turn the machine on/off
' Turn the pumps on/off
' Adjust temperatures and pressure
' View material drum levels
' View Reactor 2 events
' Reset cycle count
' Calculate yield*
Start Using App For Free Download app from the online store. (Search for Graco Reactor). Register your Reactor 2 system. Compatible with iPhone and Android products

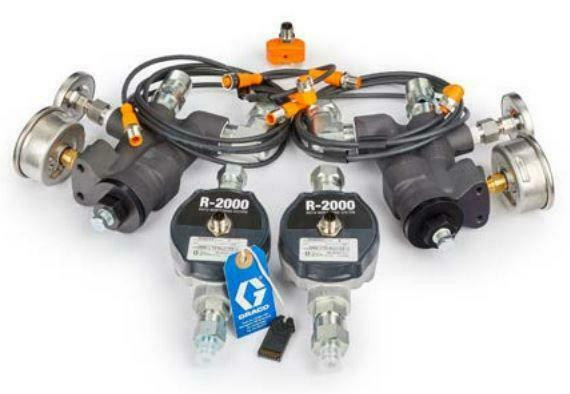

- Ratio Assurance Flow Meters
Graco's Ratio Assurance System provides industry leading solutions:
' Assurance that foam was sprayed correctly
' Peace of mind to homeowners and builders
' Eliminate costly repairs and call-backs
' Quick detection of equipment issues and off-ratio foam
' Confidence for sprayers new to the industry
' Risk mitigation of misapplied foam
6. Reversing Sensors
- Non contact for longer life
