Product Description

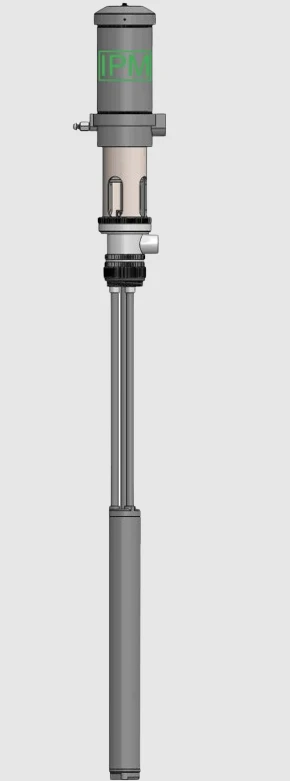

The IPM GP-20D 3:1 Air Powered Drum Pump is designed for transferring and supplying higher-viscosity fluids from standard 55-gallon drums. Built with a 3:1 pressure ratio, this pump is well suited for spray foam, polyurea, polyurethane, coatings, adhesives, resins, solvents, lubricants, and other chemical transfer applications.
The GP-20D features a single-piston air-powered design with an easily detachable air motor for faster service and changeover. Its robust pump packings and specially designed piston seals help reduce chemical buildup on the shaft, which is especially important when handling isocyanates that can crystallize after exposure to air.
This pump is commonly used by spray foam and polyurea contractors for chemical supply, spray gun supply, dispensing valve supply, and general fluid transfer.
Key Features
- 3:1 ratio air-powered drum pump
- Designed for standard 55-gallon drums
- Single-piston air-powered pump design
- Easily detachable air motor for quicker service
- Quick air motor changeover with IPM design
- Built for higher-viscosity fluids
- Robust pump packings for demanding chemical applications
- Piston seal design helps restrict corrosive material from remaining on the shaft
- Stainless steel model available
- Suitable for isocyanates, polyurethanes, polyureas, resins, adhesives, coatings, solvents, and lubricants
Typical Applications
- Spray foam chemical supply
- Polyurea coating chemical supply
- Spray gun supply
- Dispensing valve supply
- Fluid transfer
- Motor oil transfer
- Urethanes for wood products
- Coatings for fabricated metal components
- Varnishes and lacquers
- Lubricants
- Mold release agents
Technical Information
- Model: GP-20D
- Ratio: 3:1
- Max Output: 5.5 GPM / 20 LPM
- Pump Stroke: 4 in. / 101 mm
- Air Inlet Pressure Range: 30–180 PSI / 2–12 bar
- Max Fluid Output Pressure: 540 PSI / 36 bar
- Air Inlet Size: 3/8 in. NPT(F)
- Fluid Outlet Port Size: 3/4 in. NPT(F)
Contractor Note
The GP-20D is a practical option for contractors who need a reliable drum pump for spray foam, polyurea, and other chemical transfer applications. Always confirm chemical compatibility, pump material, hose setup, and system requirements before use.
