Fusion AP Parts

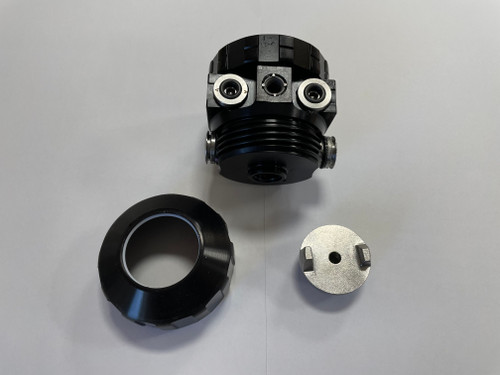

Graco Fusion AP Fluid Housing Complete

Fusion Gun Front-end / Spray Head Includes entire front spray head assembly less the mix chamber. Order mix chamber separately.

Graco Fusion AP, PC, CS, MP Ball Valve

Replace Graco Part #113379 1/4" Ball Valve

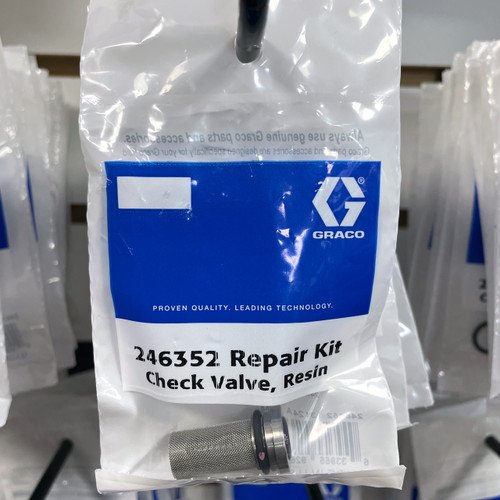

Graco Fusion AP, PC, MP B-side check Valve Assembly,

Check Valve Assembly (B side) includes complete check valve assembled with all parts (26a-26g)

Graco Fusion AP Fusion Round Pattern Mix Chamber AR5252

"(02) mix chamber with cleanout drill bits Nozzle Size 0.070, #50 Drill Impingement Port Orifice Size 0.052, #55 Drill"

Graco Ultimate gun cleaning kit

Graco Fusion gun cleaning kit is ideal for rebuilding your gun and keeping it in good operating condition.

Graco Fusion AP, PC, CS, MP Washer, wave



Graco Fusion AP, PC Spring, check valve

Check Valve Spring

Graco Fusion AP Low fluid flow, Pattern Control Disc (PCD) 1

Low Flow "Fan Tip" (12" to 14" tip pattern) 0.024 tip orifice size

Graco Fusion AP Fusion Round Pattern Mix Chamber AR4747

Mix chamber with cleanout drill bits Nozzle Size 0.0635, 1/16 Drill Impingement Port Orifice Size 0.0165, #56 Drill"

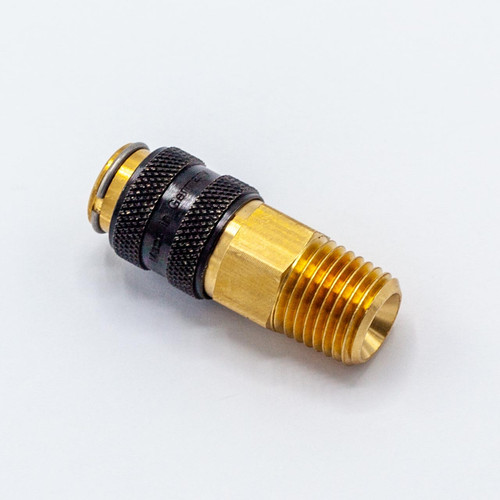

Graco Fusion AP, PC, CS, MP Coupler, air line, 1/4 NPT Male Quick Disconnect

Air Line Coupler Fitting

Graco Fusion AP Fusion Round Pattern Mix Chamber AR8686

"(05) mix chamber with cleanout drill bits Nozzle Drill Bit Size 0.116, #32 Drill Impingement Port Orifice Size 0.086, #44 Drill"

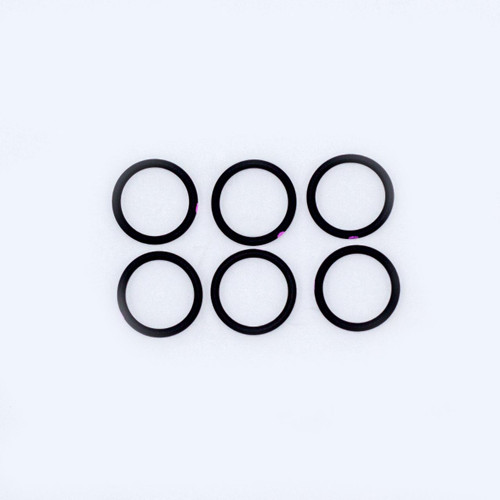

Graco Fusion AP, PC O-Ring, cartridge body (package of 6)

Part # 23974-12 SM Aircap O-Ring (6) Included
