Product Description

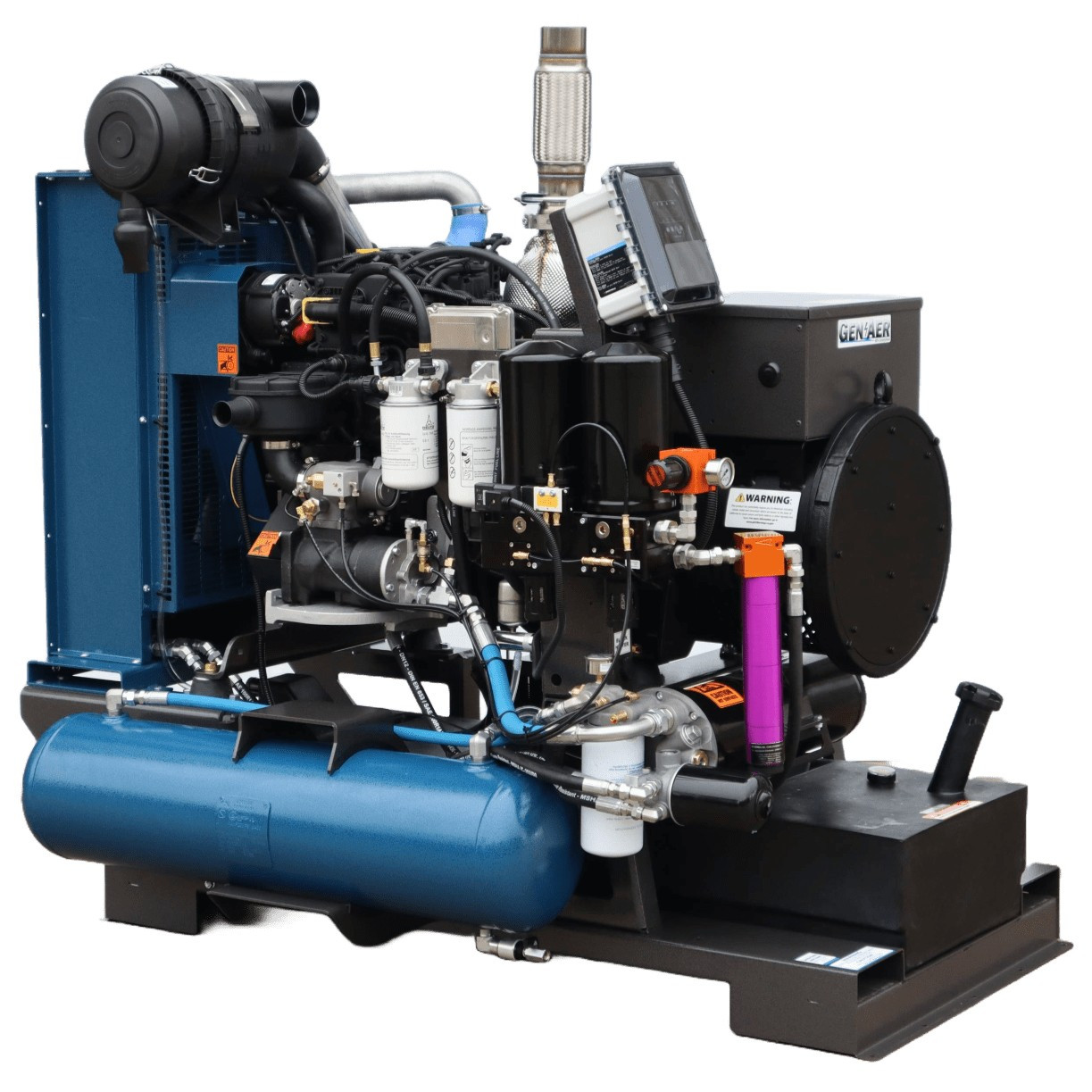

The GenAer DU3520RS generator and air compressor combo unit is built for spray foam professionals who need dependable power and compressed air in one compact, jobsite-ready package. Powered by a Deutz 2.2L diesel engine, this unit pairs a WEG heavy-duty generator with a low-speed rotary screw compressor capable of producing up to 170 PSI and 20 CFM.
Designed for durability and serviceability, the DU3520RS features an electronic control panel, spin-on filters, a powder-coated steel frame, forklift pockets, and built-in safety shutdowns to help protect the engine and compressor during operation.
Power
Deutz 2.2L diesel engine
4-cylinder engine
1800 RPM operating speed
US EPA Tier 4 compliant
Electric Output
WEG extra heavy-duty 12-lead generator
208–240V / 460V
Single-phase or 3-phase capability
35 kW output
Air Output
Low-speed, engine-driven rotary screw compressor
20 CFM air flow
Up to 170 PSI
Modulating intake valve automatically adjusts to match air demand
14-gallon integrated air tank
Features
Electronic control panel
Powder-coated steel frame
4-way forklift pockets
40-gallon poly fuel tank with remote fuel fill connection
Spin-on filters for easier service
12V starter battery included
2,000-hour / 2-year air compressor service interval
Low engine oil pressure shutdown
High engine temperature shutdown
High compressor temperature shutdown
Additional options available: built on air drying system
